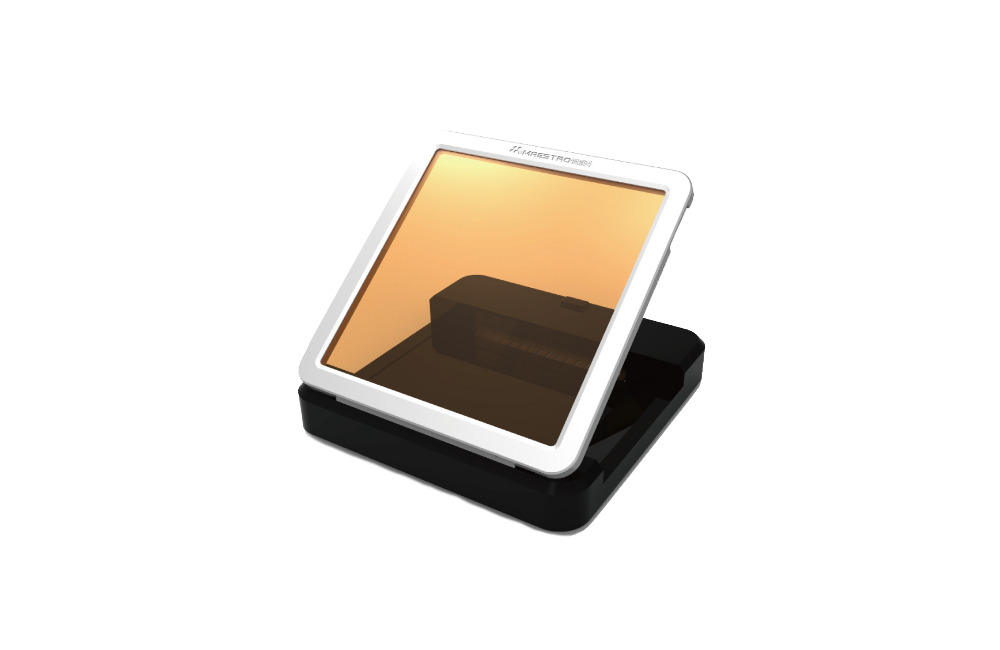

The UltraSlim LED illuminator is designed for viewing stained gels on the laboratory
bench, or within gel documentation systems. The dimensions is only 210(W) x 210(D)
x 30(H)mm. Lighting from the LED source inside the instrument produces blue light
with a narrow emission peak centered at approximately 470 nm, which is more
effective for the excitation of most nucleic acid and protein stains gel
electrophoresis at molecular biology.
Compact: 30 mm in height, THINNEST in the world now to enlarge your laboratorial space
• User Friendly: Easy to view and cut gel (NO need to wear amber glasses)
• Light: Convenient to move around (for personal)
• Safe: Blue LEDs do not cause burn to your eyes and skins; NO DNA damage inherent to UV
• Sensitive: Optimized for use with most nucleic acid and protein stains, sensitivity up to 0.5 ng
• Uniform: <10% coefficient of variance (CV) in the central viewing area
• Dimensions (mm): 210D x 210W x 30H
• Viewing surface (mm): 120D x 70W
• Sensitivity: up to 0.5 ng
• Uniformity: < 10 % CV (coefficient of variance)
• LED Wavelength (nm): 470
• Power: 24V – 1.25A
• Weight (kg): 2.3
