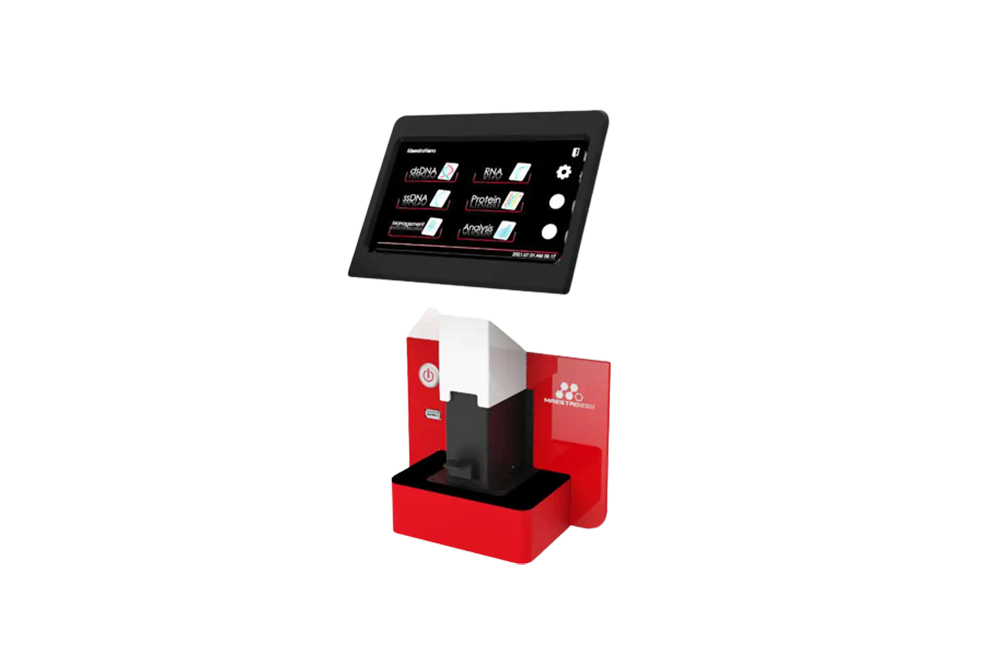

Maestrogen has a whole new design with MaestroNano Pro which is a specialized instrument for biochemical research, especially for micro-volume solution concentration measurement for DNA, and RNA Protein samples. It realizes a user-friendly interface, accurate measurement, a competitive price, and a stylish industrial design.
MaestroNano Pro is a whole new technology of optical system design of micro volume spectrophotometer. There is NO optical fiber needed, moreover, with the vertical slide design that the sample measuring area is also more durable and stable. MaestroNano Pro has a reliable measurement range of concentration from 2 to 2000 (ng/μL) and has a great resistance for the interference of ambient light to get more accurate measurement.
| Cat. No. | MN-917 |
| Measurement Sample Size | 2 μL |
| Measurement Data Output | 1. OD230 nm, OD260 nm, OD280 nm, OD320 nm 2. Sample Concentration (ng/μL) 3. OD260 nm/OD230 nm, OD260 nm/OD280 nm |
| Light Propagation Material | Quartz Glass and Pinhole |
| Absorbance Range (10mm) | 0.04~40 |
| Minimum Concentration | 2 ng/μL (dsDNA) |
| Maximum Concentration | 2000 ng/μL (dsDNA) |
| Path Length | ~0.5 mm |
| Measurement Time | < 5 seconds at conc. >25 ng/μL |
| Operation Voltage | 12 VDC, 2.5 A |
| Adaptor Input | 100~240 VAC, 50~60 Hz, 1 A |
| Operation Power Consumption | Stand by: 5 W General: 10 W Thermal printer: 15~24 W |

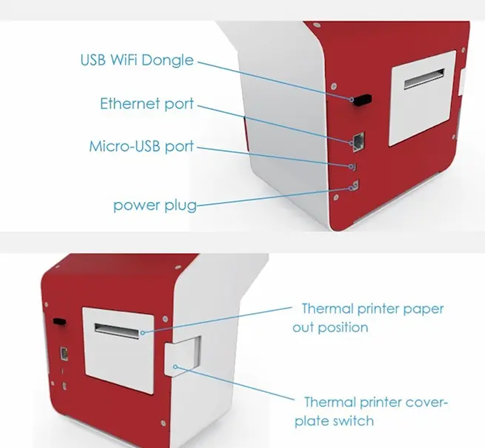

| Data Connection Interface | OTG USB (connected to PC) Wi-Fi (USB Dongle) Ethernet (RJ-45) USB Port x 2 |
| Data Output Interface | Touch screen Thermal Printer USB Storage Web Server Storage |
| USB Port Operation Voltage | 5 VDC, 0.5 A |
| Printer Paper Width/Print Width | 58 mm/48 mm |
| Touchscreen Resolution | 7 inches, WxH 1024×600 dots matrix |
| Operation System | Android Version 4.4.3 |
| Internal Storage | 32 GB |
| Maintenance | Auto Diagnosis Calibration Mode Fixed Path-length |
| System Structure | Embedded System, No PC |
| Light Source | Xenon Flash Lamp |
| Size | WxDxH 26x26x22 cm |
| Weight | 3.5 kg (not including adapter) |
| Certification | CE and FCC |
