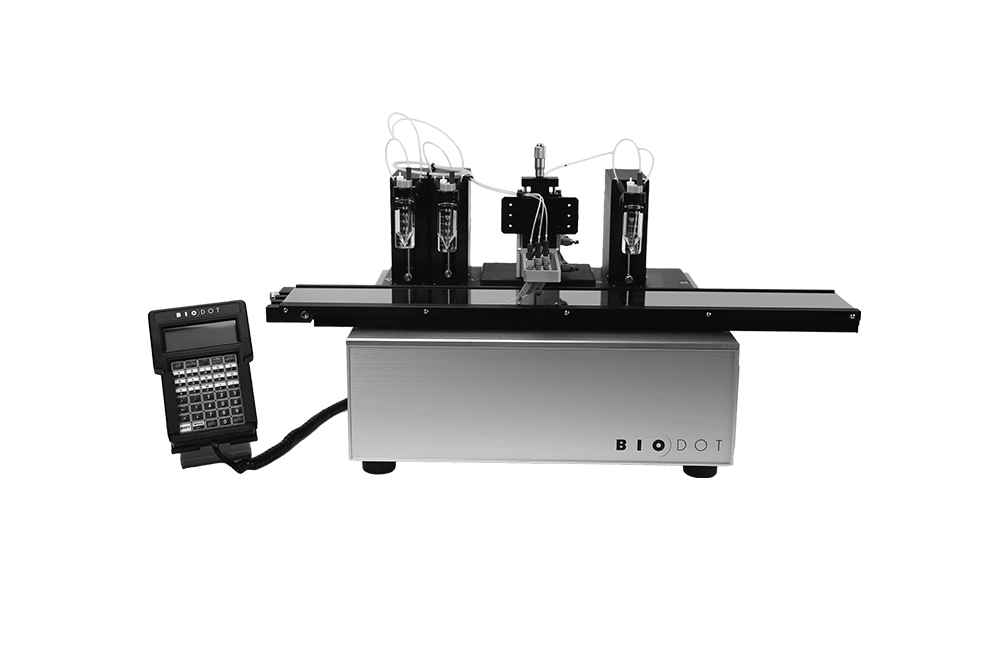

ZX LITE combines precise motion, ease of use and BioDot’s precision dispensing technologies in a low cost system. Designed for R&D and moderate volume production, the ZX Lite has a dispense area of 495 x 85 mm and up to 4 dispensing channels. The system supports the FrontLine contact printing technology for dispensing lines on membranes and the uAirjet aerosol technology for lines and coating applications.

This system prints along the X-Axis with manual adjustment in the Y-Axis. Dispenser height (Z-Axis) is manually set with a micrometer. Dispense volumes are independently programmed per channel via a handheld terminal. Laminated and un-laminated materials are held in place on the vacuum/magnetic nest. The system comes with a 3 year standard warranty.

Feature and benefits :

1 – 4 Dispensing Channels
μAirJet & FrontLine Dispensing Technologies
Program Line Length and Volume
Manual Positioning in the Y-Axis
Micrometer Adjusted, Pneumatic Z-Axis (height)
Dispense area of 495 x 85 mm
Independent Volume Control for Each Channel
Quantitative, Simultaneous Dispensing
Vacuum/Magnetic Nest
R&D to Moderate Production Throughput
Menu Driven Operating Software
Data Storage for Multiple Programs
Easy Set Up, Operation and Maintenance
Compact Footprint
