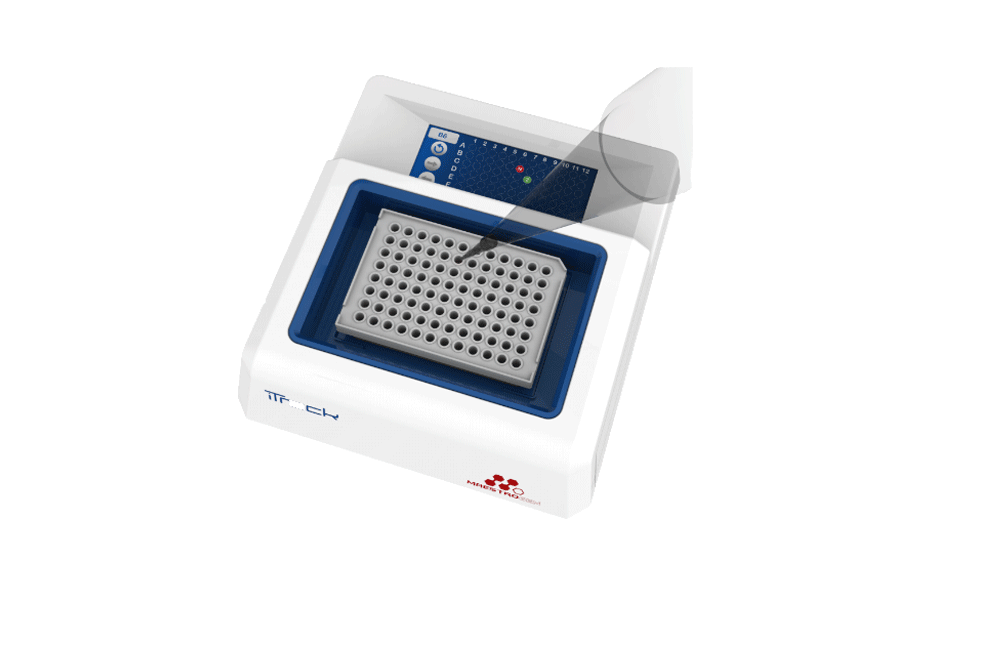

iTrack is a recording system for liquid handling. It can automatically keep tracking and recording your sample or solution preparation steps. Biological experiments increasingly involve large numbers of samples, making liquid handling in these experiments a challenge for investigators. With iTrack, investigators won’t forget which well has been already loaded. It is compatible with 96, 384-well microplate, and works with multichannel pipettes.
iTrack sensors detect pipetting locations automatically
No need to program pipetting patterns or import protocols.
(However, if you need to set up your own protocol and follow it, it’s also avaiable.)
No need to press any button after every pipetting step
Two sensor scanning layers:
Higher layer for 96-well microplates & tubes
Lower layer for 384-well microplates
| Items | Specifications |
| Compatible Pipette | Single-, 8-, & 12-channel (fixed space) |
| Compatible Tip | 0.1 – 1,000 µL |
| Compatible Microplate / Tube | 96-Well Microplate (height < 23.5 mm) |
| (PCR, ELISA, storage…) | 384-Well Microplate (height < 11 mm) 8-tube / 12-tube strips |
| Control System | Android Tablet |
| CPU & RAM | Quad-Core A9 1.6GHZ, 1G DDR3 RAM |
| Storage | 8 GB NAND Flash, MicroSD supports 64GB |
| Ports | MicroSD, MicroUSB, power, headset |
| Display | 8” Capacitive Touch Screen, 1,024 x 768 pixel |
| Cameras | Front / 2MP Back |
| Operation Voltage | 100-240V / 0.3A (Tablet) |
| Operation Power Consumption | 5V / 0.5A |
| Battery | 3.7V – 3500mAh |
| Scan Light Source | IR Light-Emitting Diode |
| >Scan Frequency | 200 – 500 Hz |
| Detection Time | 0.5 – 3 sec. |
| Size | 255mm x 230mm x 54mm (10” x 9” x 2”) |
| Weight | >1.9 Kg (4.1 lb) |
