- Two-color Near-Infrared detection
- 670 nm and 785 nm excitation
- 3 μm/pixel resolution
- Nitrocellulose-Coated slides

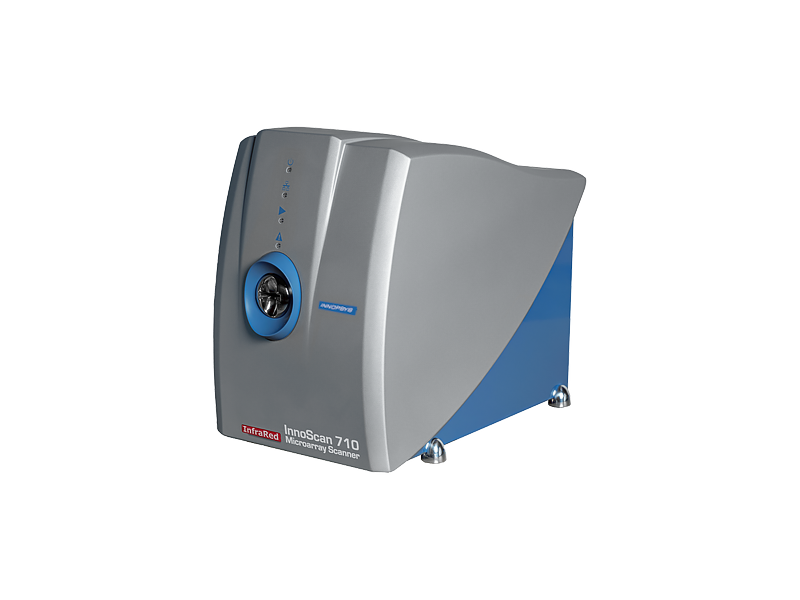

InnoScan 710-ir: Infrared microarray scanner
Ease of use, speed and image quality
Characterised by its ease-of-use, speed and image quality, InnoScan 710-IR infrared microarray scanner is the ideal tool for routine microarray reading.
Speed
With its patented XY motorisation, the InnoScan 710-IR is the fastest scanner on the market with adjustable reading speed from 10 to 35 lines per second (capable of scanning slides at 10 μm/pixel in less than 4 minutes).
Reliable and traceable results
With a barcode reader, InnoScan 710-IR microarray scanner provides accurate control of acquired images. InnoScan 710-IR is supplied with a validation slide and associated Mapix software that verifies scanner performance.
Routine use
InnoScan 710-IR is a low cost, portable scanner capable of reading medium density microarrays at a maximum resolution of 3 µm/pixel.
Technical Specifications
| PIXEL SIZE | 3 – 40μm | |
| LASER EXCITATION WAVELENGTH |
670nm | 785nm |
| COMPATIBLE FLUOROPHORES* |
Alexa Fluor 700, Alexa Fluor 680 DyLight 680, IRDye 680 |
Alexa Fluor 790, DyLight 800, IRDye 800 |
| LASER POWER | Adjustable (2 laser powers) | |
| LOADER CAPACITY | 1 slide | |
| DETECTION TYPE | Real-time confocal with 2 photomultipliers (PMT) | |
| PMT GAIN | Adjustable from 0 to 100% (Linear from 1 to 100%) |
|
| OPTICAL FILTER | 1 standard fluorescent filter by detection channel | |
| FOCUS | Real-time autofocus
Manual focus: offset adjustment 300 μm range, 1 μm increment |
|
| SLIDE SIZE | Compatible with all standard microscope slides: 25-26 x 75-76 mm2 / 1” x 3” ; thickness: 0.9 – 1.2 mm |
|
| SCANNING AREA | Adjustable up to 22 x 74 mm2 | |
| SCANNING SPEED | From 10 to 35 lines/second (l/s) 3.6 minutes per slide at a resolution of 10 μm/pixel for a simultaneous two- color acquisition |
|
| DYNAMIC RANGE | > 104 in normal mode or > 106 in dynamic extension mode |
|
| UNIFORMITY | > 95% | |
| BARCODE READER | Automatic barcode reading | |
| INTERFACE | Ethernet interface | |
| IMAGE FORMAT | TIFF (16-bit and 20-bit in dynamic extension mode) | |
| POWER SUPPLY | ~ 100-240 VAC, 1.2 A, 30-60 Hz | |
| ACQUISITION SOFTWARE |
MAPIX (image acquisition and spot quantification software) |
|
| DIMENSIONS (LXDXH) |
278 x 457 x 369 mm3 10.8” x 18.0” x 14.5” |
|
| WEIGHT |
15.5 kg (34.2 lbs) | |
