Introduction

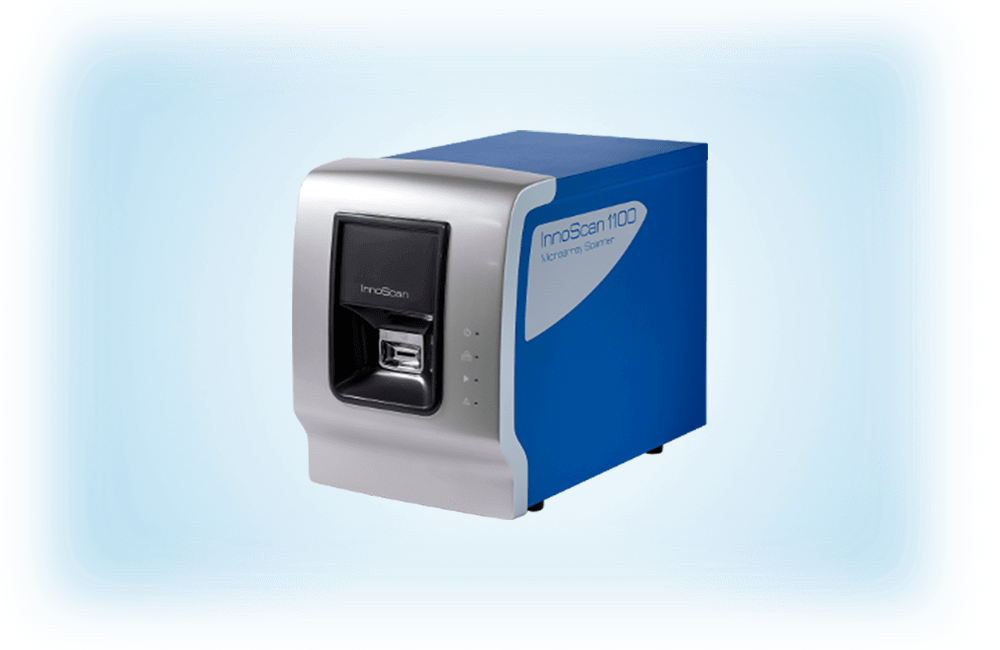

InnoScan 1100 Microarray Scanner – 3-Color ultra-high resolution scanner

Multiplexed whole-slide imaging

  • InnoScan 1100 Microarray Scanner
  • 0.5μm pixel size, equivalent to 20x microscope magnification
  • High sensitivity: high performance analogical PMTs
  • 3-color simultaneous confocal detection

Easy automation

  • Real-time autofocus or in-content focus system
  • 24-slide autoloader for high-throughput applications
  • Automated image acquisition with Mapix software

Reliable and traceable results

  • Barcode reader
  • Accurate control of acquired images
  • InnoScan 1100 Microarray Scanner supplied with a validation slide which verifies scanner performance
Description

Technical Specifications

PIXEL SIZE 0.5 – 40μm
LASER EXCITATION
WAVELENGTH		 488nm 532nm 635nm
COMPATIBLE
FLUOROPHORES*		 Cy2, FITC
Alexa Fluor 458, Alexa
Fluor 488		 Cy3
Alexa Fluor 544, Alexa
Fluor 555		 Cy5, DRAQ 5
Alexa Fluor 647
LASER POWER Adjustable (2 laser powers)
LOADER CAPACITY 1 slide
DETECTION TYPE Real-time confocal with 3 analog photomultipliers
(PMT)
PMT GAIN Adjustable from 0 to 100%
(Linear from 1 to 100%)
Detection Analog PMT confocal detection
OPTICAL FILTER 7 position filter wheel**
1 standard fluorescence and 1 neutral density filter per channel;5
additional filters on request
FOCUS Real-time autofocus

Manual focus: offset adjustment 300 μm range, 1 μm increment
SLIDE SIZE Compatible with all standard microscope slides:
25-26 x 75-76 mm2
/
1” x 3” ; thickness: 0.9 – 1.2 mm
SCANNING AREA Adjustable up to 22 x 74 mm2
SCANNING SPEED From 10 to 35 lines/second (l/s)
3.6 minutes per slide at 10 μm and 10.5min for an area 22×22 mm2 at
1μm
DYNAMIC RANGE > 104 in normal mode or >
106 in dynamic
extension
mode
UNIFORMITY > 95%
BARCODE READER Automatic barcode reading
INTERFACE Ethernet interface
IMAGE FORMAT TIFF (16-bit and 20-bit in dynamic extension mode)
POWER SUPPLY ~ 100-240 VAC, 1.2 A, 50-60 Hz
ACQUISITION
SOFTWARE		 MAPIX (image acquisition and spot quantification
software)
DIMENSIONS
(LXDXH)		 316 x 549 x 432 mm3 12.5” x 21.6” x
17.0”
WEIGHT
 30 kg (66.1 lbs)
