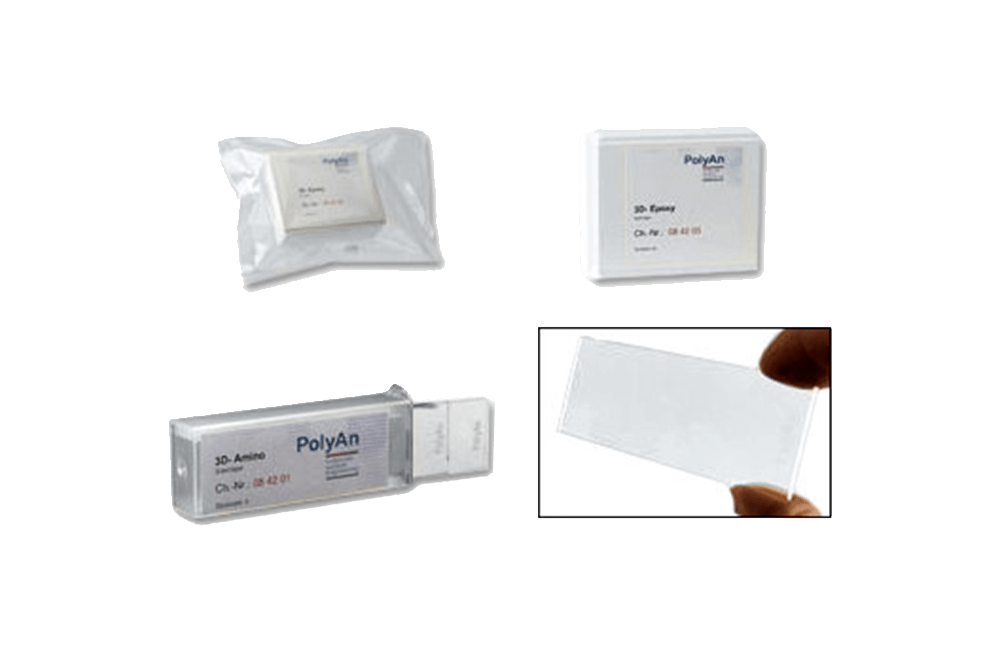

For high-resolution microscopic imaging or scanning applications PolyAn offers functionalized coverslips. All of PolyAn’s standard functional coatings can also be applied to coverslip glass.
All coverslips have the standard dimension of 25 x 60mm. Type #1.5 is used as a standard thickness. All coverslips are packed in boxes of 5. Other functionalities and formats are available upon request. PolyAn also offers functionalised substrates that are coated with gold or other noble metals as well as waveguide materials.
2D-functionalised glass slides
| Id | Surface Modifications | Product Dimensions | Packaging Volume |
| 104 00 021 | 2D-Amino | 25 x 75 x 1 mm | 25 Slides/Box |
| 104 00 025 | 2D-Amino | 25 x 75 x 1 mm | 5 Slides/Box |
| 104 00 121 | 2D-Carboxy | 25 x 75 x 1 mm | 25 Slides/Box |
| 104 00 125 | 2D-Carboxy | 25 x 75 x 1 mm | 5 Slides/Box |
| 104 00 221 | 2D-Epoxy | 25 x 75 x 1 mm | 25 Slides/Box |
| 104 00 225 | 2D-Epoxy | 25 x 75 x 1 mm | 5 Slides/Box |
| 104 00 321 | 2D-Aldehyde | 25 x 75 x 1 mm | 25 Slides/Box |
| 104 00 325 | 2D-Aldehyde | 25 x 75 x 1 mm | 5 Slides/Box |
| 104 00 421 | 2D-Activated Amino (PDITC) | 25 x 75 x 1 mm | 25 Slides/Box |
| 104 00 425 | 2D-Activated Amino (PDITC) | 25 x 75 x 1 mm | 5 Slides/Box |
| 104 00 521 | 2D-Thiol | 25 x 75 x 1 mm | 25 Slides/Box |
| 104 00 525 | 2D-Thiol | 25 x 75 x 1 mm | 5 Slides/Box |
| 104 00 621 | 2D-Azide | 25 x 75 x 1 mm | 25 Slides/Box |
| 104 00 625 | 2D-Azide | 25 x 75 x 1 mm | 5 Slides/Box |
3D-functionalised glass slides
| 3D-functionalised glass slides | |||
| IdSurface | Modifications | Product Dimensions | Packaging Volume |
| 104 00 001 | 3D-Amino | 25 x 75 x 1 mm | 25 Slides/Box |
| 104 00 005 | 3D-Amino | 25 x 75 x 1 mm | 5 Slides/Box |
| 104 00 101 | 3D-Carboxy | 25 x 75 x 1 mm | 25 Slides/Box |
| 104 00 105 | 3D-Carboxy | 25 x 75 x 1 mm | 5 Slides/Box |
| 104 00 201 | 3D-Epoxy | 25 x 75 x 1 mm | 25 Slides/Box |
| 104 00 205 | 3D-Epoxy | 25 x 75 x 1 mm | 5 Slides/Box |
| 104 00 301 | 3D-Aldehyde | 25 x 75 x 1 mm | 25 Slides/Box |
| 104 00 305 | 3D-Aldehyde | 25 x 75 x 1 mm | 5 Slides/Box |
| 104 00 401 | 3D-NHS | 25 x 75 x 1 mm | 25 Slides/Box |
| 104 00 402 | 3D-NHS (hydrophilic) | 25 x 75 x 1 mm | 25 Slides/Box |
| 104 00 405 | 3D-NHS | 25 x 75 x 1 mm | 5 Slides/Box |
| 104 00 406 | 3D-NHS (hydrophilic) | 25 x 75 x 1 mm | 5 Slides/Box |
| 104 00 431 | 3D-Activated Amino (PDITC) | 25 x 75 x 1 mm | 25 Slides/Box |
| 104 00 435 | 3D-Activated Amino (PDITC) | 25 x 75 x 1 mm | 5 Slides/Box |
| 104 00 441 | 3D-Maleimide | 25 x 75 x 1 mm | 25 Slides/Box |
| 104 00 445 | 3D-Maleimide | 25 x 75 x 1 mm | 5 Slides/Box |
| 104 00 501 | 3D-Thiol | 25 x 75 x 1 mm | 25 Slides/Box |
| 104 00 505 | 3D-Thiol | 25 x 75 x 1 mm | 5 Slides/Box |
| 104 01 201 | Covalently coated Poly-L-Lysin | 25 x 75 x 1 mm | 25 Slides/Box |
| 104 02 201 | Covalently coated Streptavidin | 25 x 75 x 1 mm | 5 Slides/Box |
| 104 02 205 | Covalently coated Streptavidin | 25 x 75 x 1 mm | 25 Slides/Box |
| 104 03 201 | Covalently coated Neutravidin | 25 x 75 x 1 mm | 5 Slides/Box |
| 104 03 205 | Covalently coated Neutravidin | 25 x 75 x 1 mm | 25 Slides/Box |
| 104 04 205 | Covalently coated Avidin | 25 x 75 x 1 mm | 25 Slides/Box |
Technical specifications
Packaging
The slides are packaged in inert atmospheric boxes, with a capacity of 25 or 5 slides per box.
Storage
PolyAn’s slides are characterised by a long shelf-life when stored dry, at room temperature and protected from sunlight. All slides are packaged in boxes under Argon atmosphere to avoid contamination with particles. The Argon atmosphere also minimises degradation of the reactive surface through contact with air or humidity.
