Introduction

Measures Sample in 3 seconds

Comprehensive Operation Experience

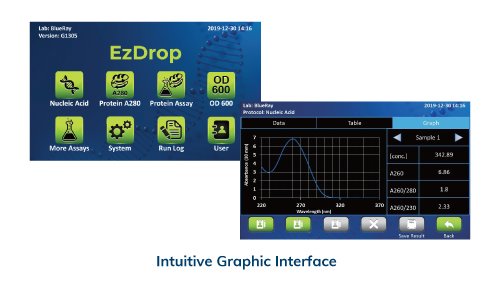

 The built-in intuitive graphic interface is easy to use, and can be operated without extra computing equipment, saving space in the laboratory.
 Multiple built-in functions allow you to measure nucleic acids, proteins, cells and other samples with the touch of a button.
 The automated measuring function raises the speed and convenience of operation.
 The thoughtfully-designed assist light makes up for the lack of ambient light, and minimizes sample placement errors.

Quality Guaranteed

 A layer of Nano hydrophobic coating on the sample window ensures the formation of sample column.
 The replaceable sample window system greatly reduces the possibility of residual contamination.
 The CV value of absorbance is < 1%.
 The cushion design on the detection arm reduces impact, which in turn reduces error in experiments.

Description

Specifications

Optics Information

Sample Volume 1 µL minimum volume
Sample Number 1
Pathlength 0.5 mm / 0.05 mm
Light Source Pulsed Xenon flash lamp
Detector Type 2048 element CMOS
Wavelength Range 190 – 1000 nm
Bandwidth Bandwidth
Wavelength Accuracy 1.0 nm
Spectral Resolution 1.5 nm (FWHM at Hg 253.7 nm)
Absorbance Precision (raw) 0.0015 A (0.5 mm)
Absorbance Precision 0.03 A (1 cm equivalent)
Absorbance Accuracy 3.0% at 0.75 A at 300 nm
Absorbance Range (1 cm equivalent) 0 (0.04) – 400 A
Detection Range dsDNA: 2 – 20000 ng/µL; BSA: 0.06- 600 mg/mL
Sample Surface Material of Construction (Lower and Upper) Stainless steel and quartz window with hydrophobic treatment
Measurement Time < 3 sec

Software

Operating System Custom Linux based OS
Registered User Folder No. > 500 sets
User Folder Password Protection Yes

General

Display 7” color LCD with capacitive touch panel
Data Port 1 USB Type-A front port for USB flash drive
Footprint Dimensions (W x D x H) 206 x 333 x 166 mm
Weight 3.5 kg ( 7.8 lb)
Glove Compatibility All common lab gloves
Internal Storage 32 GB flash memory
Power Adapter Input: AC 100-240 V, 50/60 Hz; Output: DC 24 V, 2.08 A
Certifications CE, RoHS

* Specifications are subject to change without prior notice.
